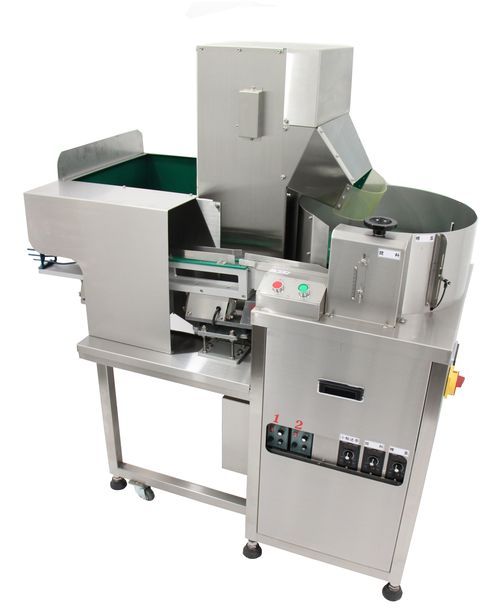

BOTTLE UNSCRAMBLER SYSTEM
Automatic Bottle Unscrambler is suitable for automatic arrangement and rank for all kinds of impact resistant containers(round and square bottle),it is mainly used in pharmaceutical, food and relevant industry.
CHARACTERISTIC:
1/The speed of the equipment is quick and steady,the qualified rate is high Simple operation,easy to grasp.
2/ Automatic stopping when bottles are full.
3/automatic starting when bottles are lacking on the belt conveyor.
Main Technical Parameters
Model |
SH-150 |
Max.Speed |
40-100 bottle/Min |
Bottle |
Ø20 mm~Ø55 mm |
Bottle height |
30~120 mm |
Air pressure |
0.3~0.6 MPa |
Air consumption |
60 L/min Clean air |
Dimensions( L×W×H ) |
1000*1000*800mm |
Overall Power |
1 kw |
Power supply |
AC 220 V ,50~60 Hz |
Weight |
120 kg |
