Wrap around labelling machine wraparound bottle labeller
Wrap around labelling machine wraparound bottle labeller. Machinery automation supply packaging machinery, Liquid fillers , Capping machines , labelling…

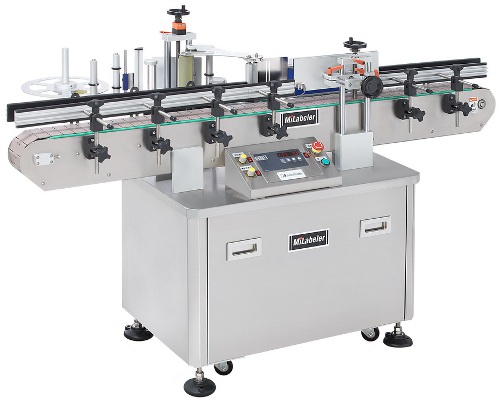

WRAP AROUND LABELLING MACHINE
The Compact has been designed specifically for use with cylindrical products and fits nicely between the semi-automatic labeller and our more advanced and more expensive AP-Auto applicators.
The controller is built into a polished Aluminum mono-bloc and although fixed speed, it is possible to adjust internally.
ONE AUTOMATIC LABELING HEAD
Max Label width: 200 mm
Min. Label width: 8 mm
Core diameter of the label reel: 38 mm
Outside diameter of the reel: 300mm max.
Stepper motor with FIXED speed: 25 mts/min
Start when the Product sensor or Fiber-optic sensor sees the product
Label-gap sensor that can adjust the off-set of the label from the peeling plate
Integrated Micro-processor controlled electronic control box with LED display
Control box allows adjustment of the labelling parameters
Foam-rubber pressure roller attached to the peeling plate
Height and X-Y adjustable
CONVEYOR BELT
Conveyor belt width: 100mm
Conveyor belt lenght: 1500mm
Speed max 25 mts/min
Height: /-750mm
Polished aluminium mono-bloc standing on 4 feet
Control panel (on/off button, emergency button)
WRAP AROUND BELT FOR CYLINDRICAL PRODUCTS
Fixed speed system to apply wrap around label to cylindrical products
Adjustable horizontally and vertically
